PA 950 HD: The Inherently Black SLS Nylon 12 That Replaces HP MJF PA 12

If you are running production parts on HP Multi Jet Fusion PA 12 today, you already know the catch nobody puts on the quote: MJF parts don’t come out black. They come out grey. Black is a second operation — a dye bath that colors the surface and leaves the core untouched.

For a functional prototype, that’s fine. For an end-use housing, an EV interior trim, or a branded consumer part, it’s a liability waiting for its first scratch.

Objectify Technologies runs a drop-in answer: PA 950 HD — a stabilized Nylon 12 that is black to the core, straight out of the build chamber, on our in-house EOS Selective Laser Sintering (SLS) fleet. Same PA 12 family. Comparable mechanicals. Up to 80% powder reusability. Zero dye bath.

If you spec MJF PA 12 for black production parts, this is the material to qualify next.

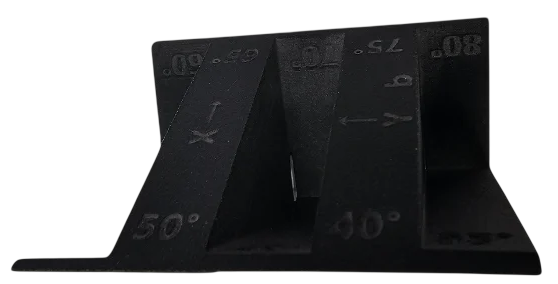

objectify printed 3d part pa 950 hd

PA 950 HD printed part on EOS build platform — Credit: EOS

The MJF PA 12 Black Problem — And How PA 950 HD Solves It

MJF PA 12 is an excellent engineering material. But the path to a black MJF part introduces exactly the risks your quality team hates.

The black is only skin-deep. MJF parts are dyed by submerging them in a pigment bath. The colour sits on the surface. One scratch on a gripper, an enclosure edge, or a cabin trim clip and the grey core shows through — a warranty and rework headache on visible parts.
Colour is a variable, not a constant. Dye uptake shifts with geometry, build position and surface roughness, so batch-to-batch and part-to-part colour intensity can drift. That’s a real problem for brand-critical or matched-set components.
Dyeing adds a stage — and a bottleneck. Bead-blast, dye, dry, QC the colour. Every step adds lead time, labour, cost, and one more thing to inspect before a part ships.
PA 950 HD deletes the entire dyeing stage. Black pigment is mixed uniformly through the powder, so every part is inherently black — deep, consistent, and identical from the surface to the centre. Scratch it, machine a feature into it, drill it: still black. No dye bath, no colour drift, no surface-only compromise.

And because it’s SLS-native, PA 950 HD comes off the machine with a smooth, high-definition, injection-moulding-grade surface — the premium black finish MJF users usually chase with extra vapour-smoothing and dye steps.

Where PA 950 HD Wins: Application by Application

This is a production material, not a demo. Here’s where it directly replaces MJF PA 12 on the shop floor.

Automotive & EV 3D Printing — Interior Trim, Under-Hood Brackets, Connector Housings

Automotive is MJF’s home turf, and it’s exactly where inherent black pays off. Visible cabin components, EV accessory housings, and interior clips demand a uniform, premium black that survives handling and doesn’t reveal a grey core at a scratched edge. Under-hood brackets, ducting, and connector housings need the mechanical and thermal margin — PA 950 HD holds shape with a heat deflection temperature of 164°C at 0.45 MPa. You get the aesthetic and the durability in one pass, no dye line.

Robotics & Automation Tooling — End-Effectors, Grippers, Custom Fixtures End-effectors, sensor mounts, and bespoke grippers live and die on strength-to-weight and fast turnaround. PA 950 HD delivers 44 MPa tensile strength with 13.1% elongation at break — tough enough for repeated cycling, forgiving enough to absorb impact without cracking. Integrators can print a custom gripper, bolt it on, and it looks like a finished production tool, not a prototype.

Electrical Enclosures & Industrial Housings

Electrical enclosures, control housings, and equipment covers need consistent black aesthetics, chemical resistance, and dimensional stability under thermal load. Because there’s no dye bath, there’s no moisture-driven dimensional variance from wet finishing — tight tolerances stay tight. And the through-black means a housing that gets knocked on an install still looks factory-fresh.

Consumer & Premium Goods — Eyewear, Wearables, Product Housings

For consumer-facing products, colour is the brand. Eyewear, wearable housings, and premium accessories can’t tolerate the colour drift of a dye bath. PA 950 HD’s deep, repeatable black and smooth surface give brands a production-grade finish straight off the machine — ideal for small-series launches and limited runs where injection-mould tooling can’t be justified.

Drones, UAVs & Lightweight Structures

Airframe brackets, avionics housings, camera mounts, and ducting reward every gram saved and every day of lead time cut. A lightweight, durable, inherently black Nylon 12 lets UAV builders iterate airframe hardware fast and move straight into low-rate production without a colour-finishing detour.

MRO Spares & On-Demand Digital Inventory (Manufacture-on-Demand)

This is the big one for procurement. When 3D-printed spares look and perform like the legacy part, you can retire the shelf. PA 950 HD parts resemble regular production nylon and match the mechanical behaviour of standard PA 12 — so OEM and aftermarket spares, brackets, and housings can be digitised. Keep the CAD as your single source of truth; we print the batch when you need it. That’s warehousing capital freed and dead stock eliminated.

The Head-to-Head: PA 950 HD vs HP MJF PA 12

	HP MJF PA 12	PA 950 HD (SLS)
Native part colour	Grey (grey surface, black core)	Black throughout
How black is achieved	Post-process dye bath — surface only	Integral pigment — core to surface
Colour consistency	Varies with geometry & build position	Uniform, batch-to-batch repeatable
Scratch reveals base colour?	Yes — grey core shows	No — black all the way through
Tensile strength (XY)	» 48 MPa	44 MPa
Powder reusability	Up to ~80%	Up to 80% (20/80 refresh)
Finishing to reach production black	Bead-blast + dye + dry + colour QC	None — black off the machine
Surface out of machine	Slightly grainy grey	Smooth, high-definition black

The honest read: MJF PA 12 has a marginal edge on raw tensile, and PA 950 HD trades those few MPa for integral black, strong elongation, high thermal resistance, and a finished surface with no dye stage. For the black production and end-use parts most teams are actually running, that’s a straight upgrade — not a compromise.

Both figures are representative datasheet values under standardised test conditions. Real-world performance depends on geometry and process parameters, which is exactly why Objectify validates critical dimensions and mechanical properties as part of DfAM.

Have a part on MJF PA 12 right now? Request a PA 950 HD sample and run it head-to-head before you commit to your next production run.

The ROI Case: 80% Reusability, Zero Dye Cost

Cost-per-part in AM is driven by material efficiency — and PA 950 HD is engineered for it.

Most SLS polymers lose viscosity control after repeated exposure to build temperatures, forcing operators to dilute with high volumes of virgin powder. PA 950 HD uses a stabilised polymer formulation that holds consistent viscosity across multiple thermal cycles.

Under optimal conditions, Objectify runs a 20/80 refresh rate — just 20% virgin powder to 80% reused — while still meeting demanding quality standards.

Stack that near-zero-waste powder economy on top of a deleted dyeing stage, and the numbers move fast. In practical terms that can mean up to 35% lower part cost versus conventionally dyed PA 12, and it also:

- Stabilises pricing for bulk and repeat orders
- Supports corporate sustainability and ESG targets
- Lowers CPP for low-to-medium-volume production without sacrificing quality
- Cuts lead time by removing an entire post-process from the schedule

Want the full picture on our SLS build strategies and powder-handling workflows? Review our equipment lineup and SLS service capabilities.

Industrial-Strength Durability — Not Just a Pretty Finish

A premium black finish means nothing if the part fails on the line. According to ALM’s official PA 950 HD technical datasheet, the material typically delivers:

Tensile strength (XY): 44 MPa
Tensile modulus (XY): 1670 MPa
Elongation at break (XY): 13.1%
Heat deflection temperature (HDT at 45 MPa): 164°C

That balance of stiffness, ductility and thermal resistance is what makes PA 950 HD reliable across high-stress duty — from automation end-effectors to under-hood brackets and electrical enclosures that see real mechanical and thermal load.

Why Objectify for PA 950 HD: EOS-Aligned SLS, Made in India

Since 2013, Objectify Technologies has partnered with aerospace, automotive, and industrial leaders to move parts from CAD to production. As an AS9100 and ISO 9001-certified metal and polymer 3D printing partner with our own SLS systems in-house, we control quality end to end.

Objectify is also a service partner of EOS in India, operating EOS SLS platforms — including the EOS P 396, one of the systems ALM has validated for PA 950 HD — that align directly with the material’s intended processing window. That combination of material, machine, and process control is what lets engineering teams sign off PA 950 HD for production and critical functional parts with confidence.

For the full breadth of what we run, visit our engineering services page.

Frequently Asked Questions

Is PA 950 HD as strong as HP MJF PA 12?

PA 950 HD’s tensile strength (44 MPa) is close to MJF PA 12 (»48 MPa) — a marginal difference for most functional applications — while offering higher elongation at break and a 164°C HDT.

Does PA 950 HD scratch white or grey like dyed MJF parts?

No. PA 950 HD’s black pigment is mixed through the powder before printing, so the colour is consistent from the surface to the core — scratches, machined features, and drilled holes stay black.

What tolerances can I expect on PA 950 HD parts?

Tolerances depend on part geometry and process parameters. Objectify validates critical dimensions and mechanical properties as part of DfAM (Design for Additive Manufacturing) for every qualification run — talk to our engineering team for part-specific tolerance data.

Can PA 950 HD replace HP MJF PA 12 without redesigning my part?

In most cases, yes. PA 950 HD is a drop-in Nylon 12 alternative with comparable mechanical properties — Objectify recommends a sample run to validate fit, function, and finish before switching a production line.

How much does switching to PA 950 HD save on cost-per-part?

Combining ~80% powder reusability with a deleted dye-bath stage can bring cost-per-part down by up to 35% versus conventionally dyed MJF PA 12, depending on part geometry and order volume.

Ready to Retire the Dye Bath?

Stop paying for a finishing stage you don’t need — and stop shipping black parts with a grey core.

If MJF PA 12 is in your production stack today, request a PA 950 HD sample and put it head-to-head on your own parts. Email Objectify’s enterprise team at marketing@objectify.co.in, or upload your CAD to our portal for a detailed SLS quote.

One part is enough to see the difference — in cost-per-part, lead time, and a black finish that goes all the way through.
